You have an SAP HANA on Azure (Large Instances) deployment.
You need to generate health check log files for the deployment.
What should you do?
A. From a SSH session on the HANA Large Instances node, run /opt/sgi/health_check/microsoft_tdi.sh.
B. From the Azure portal, select Diagnose and solve problems.
C. From the Azure portal, select New support request.
D. From a SSH session on the HANA Large Instances node, run /var/lib/waagent/Microsoft.AzureCAT.AzureEnhancedMonitoring.MonitorX64Linux-1.0.0.82/AzureEnhancedMonitoring -monitor.
Show Answer
Correct Answer: A
Explanation: Run `/opt/sgi/health_check/microsoft_tdi.sh` from an SSH session on the HANA Large Instance. It generates the health-check log files.
Question 72
You have four SAP NetWeaver servers that run on Azure virtual machines deployed across two Azure Availability Zones.
You plan to deploy a load balancing solution for the SAP GUI app.
What should you use?
A. Azure Basic Load Balancer
B. Azure Application Gateway V1
C. Azure Standard Load Balancer
D. Azure Application Gateway V2
Show Answer
Correct Answer: C
Explanation: Use Azure Standard Load Balancer. SAP GUI uses SAP DIAG/RFC traffic, which is not supported by the HTTP/HTTPS-focused Application Gateway. Standard Load Balancer supports the required TCP traffic and availability-zone deployments; Basic Load Balancer is not suitable for this zonal design.
Question 73
HOTSPOT
You have an SAP development landscape on Azure.

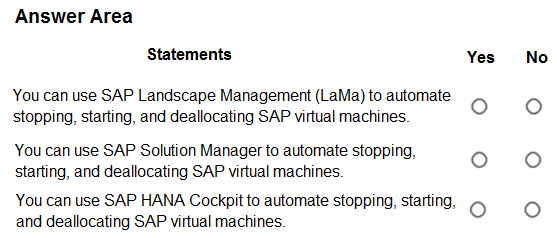

For each of the following statements, select Yes if the statement is true. Otherwise, select No.
NOTE: Each correct selection is worth one point.
Show Answer
Correct Answer: SAP Landscape Management (LaMa): Yes
SAP Solution Manager: No
SAP HANA Cockpit: No
Explanation: LaMa can integrate with Azure to automate SAP VM lifecycle operations. Solution Manager and HANA Cockpit do not automate Azure VM stopping, starting, and deallocation.
Question 74
HOTSPOT

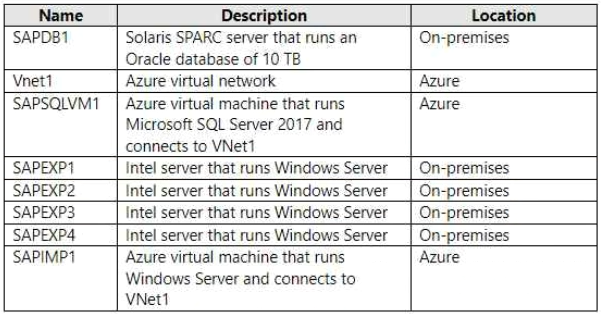

You have an on-premises SAP NetWeaver production landscape and an Azure subscription that contains the resources shown in the following table.
You have a 10-Gbps ExpressRoute circuit between the on-premises environment and VNet1.
You plan to migrate the landscape to Azure.
As part of the solution, you need to migrate the on-premises Oracle database to SAPSQLVM1. The solution must minimize how long it will take to complete the data migration.

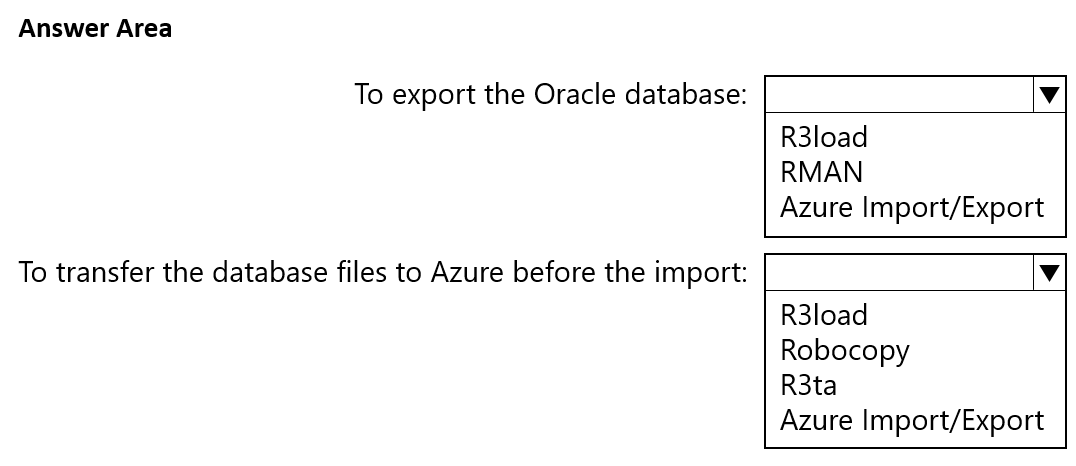

What should you use? To answer, select the appropriate options in the answer area.
NOTE: Each correct selection is worth one point.
Show Answer
Correct Answer: Export the Oracle database: R3load
Transfer the database files to Azure: Robocopy
Explanation: R3load supports the heterogeneous migration from Oracle to SQL Server. Robocopy can transfer the exported files over the 10-Gbps ExpressRoute connection before import.
Question 75
You have an Azure subscription. The subscription contains a Recovery Services vault named vault1 and a virtual machine named HANA1 that hosts an SAP HANA database.
You need to back up the SAP HANA database to vault1.
What should you do first?
A. From HANA1, run the SAP HANA backup configuration script.
B. From HANA1, run the sp_iqrebuildindexforbp SAP HANA command.
C. Configure a replication policy.
D. Configure a system-assigned managed identity.
Show Answer
Correct Answer: D
Explanation: First enable a system-assigned managed identity on HANA1 so it can authenticate to the Recovery Services vault. The SAP HANA backup configuration script is run afterward.
Question 76
HOTSPOT
You have an Azure virtual machine named VM1 that hosts an SAP application server.
You need to implement snoozing for VM1. The solution must meet the following requirements:
• Minimize compute costs for VM1.
• Gracefully terminate the SAP application.

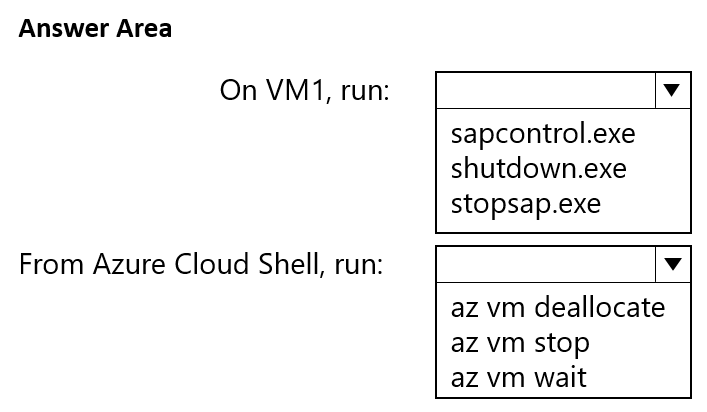

What should you do? To answer, select the appropriate options in the answer area.
NOTE: Each correct selection is worth one point.
Show Answer
Correct Answer: On VM1: stopsap.exe
From Azure Cloud Shell: az vm deallocate
Explanation: stopsap.exe gracefully stops the SAP application. Deallocating the VM stops compute charges while it is snoozed.
Question 77
HOTSPOT
You have an Azure subscription that contains the resources shown in the following table.
You plan to deploy an SAP production landscape.

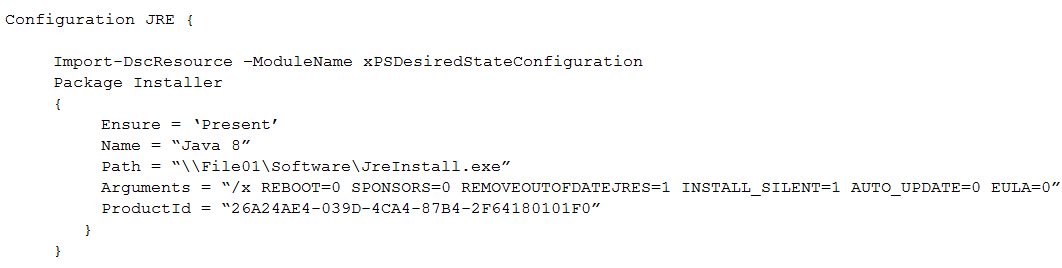

You create the following PowerShell Desired State Configuration (DSC) and publish the DSC configuration to corpsoftware.
You need to deploy the DSC configuration to VM1.

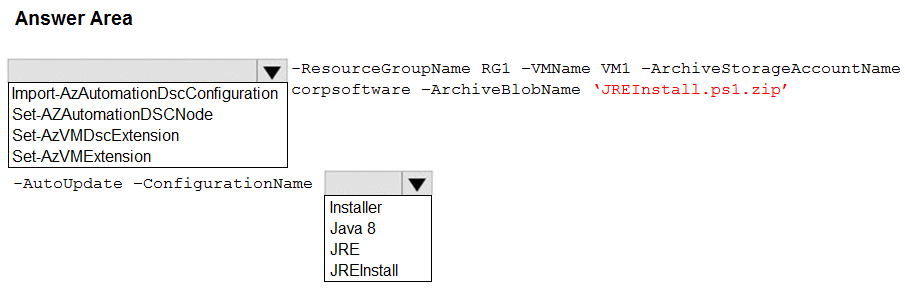

How should you complete the command? To answer, select the appropriate options in the answer area.
NOTE: Each correct selection is worth one point.
Show Answer
Correct Answer: Set-AzVMDscExtension
JRE
Explanation: Set-AzVMDscExtension applies the published DSC archive to VM1. The configuration name is JRE; Installer is the name of the Package resource within it.
Question 78
HOTSPOT
You are deploying an SAP production landscape in Azure.
You need to create an Azure policy that meets the following requirements:
• Limits which applications can be installed on virtual machines
• Ensures that when a virtual machine is deployed, the virtual machine has the latest version of the extension to be installed

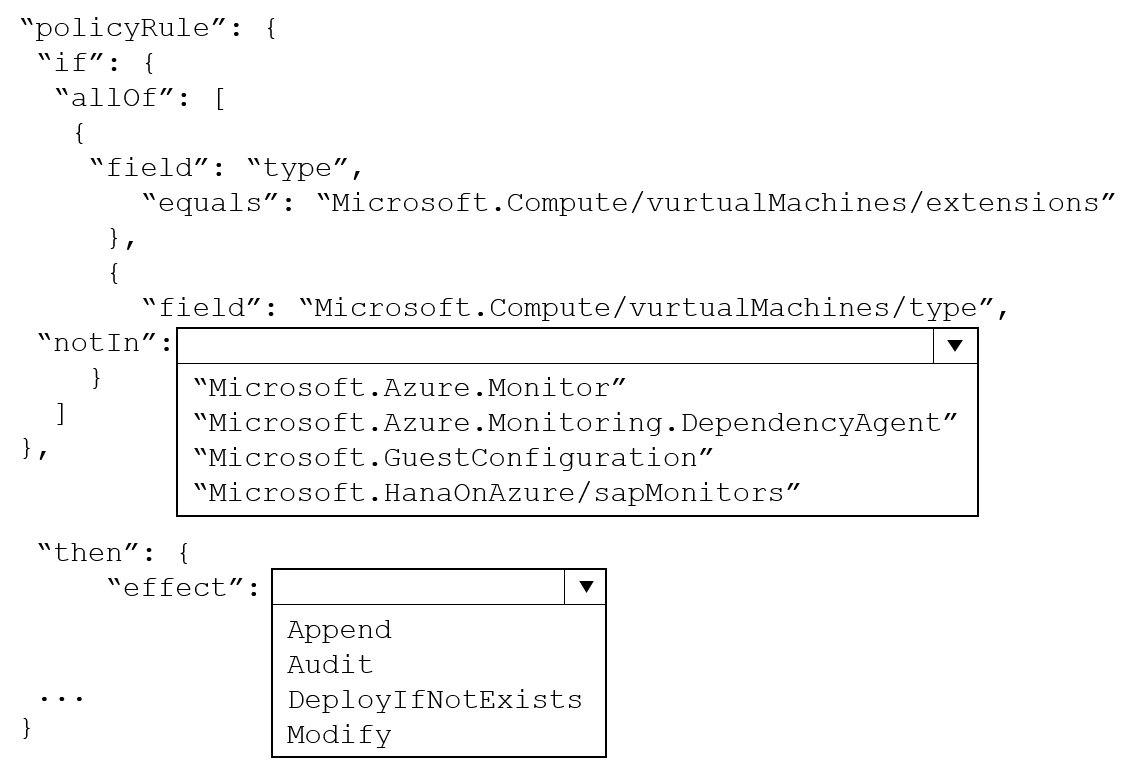

How should you complete the policy? To answer, select the appropriate options in the answer area.
NOTE: Each correct selection is worth one point.
Explanation: Guest Configuration supports policies that restrict software installed on VMs. DeployIfNotExists installs the required extension when it is missing during deployment.
Question 79
HOTSPOT

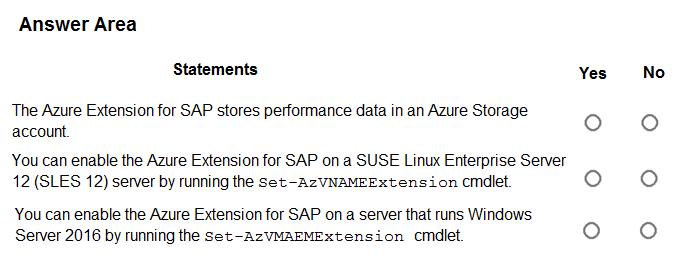

For each of the following statements, select Yes if the statement is true. Otherwise, select No.
NOTE: Each correct selection is worth one point.
Show Answer
Correct Answer: 1. Yes
2. No
3. Yes
Explanation: The extension stores performance data in an Azure Storage account. The cmdlet in the second statement is misspelled; `Set-AzVMAEMExtension` is the valid cmdlet and can be used for the Windows Server scenario.
Question 80
HOTSPOT

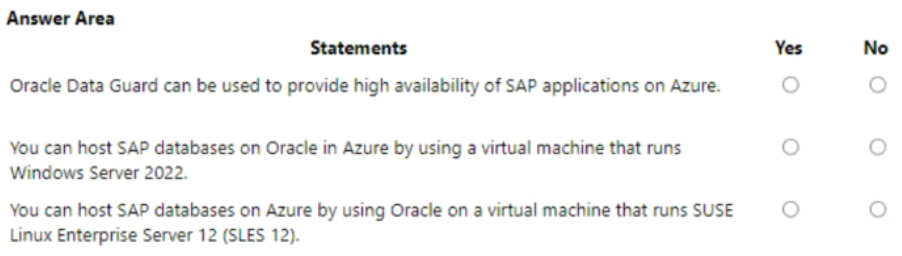

For each of the following statements, select Yes if the statement is true. Otherwise, select No.
NOTE: Each correct selection is worth one point.
Show Answer
Correct Answer: 1. Yes
2. Yes
3. No
Explanation: Oracle Data Guard can provide high availability for the Oracle database used by an SAP application on Azure. SAP on Oracle is supported on eligible Azure VMs running Windows Server 2022, but not on SLES 12.
