HOTSPOT

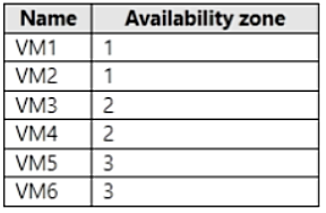

You have an Azure subscription that contains the virtual machines shown in the following table.
You need to deploy a highly available, three-tier SAP NetWeaver landscape that will use an Oracle database.

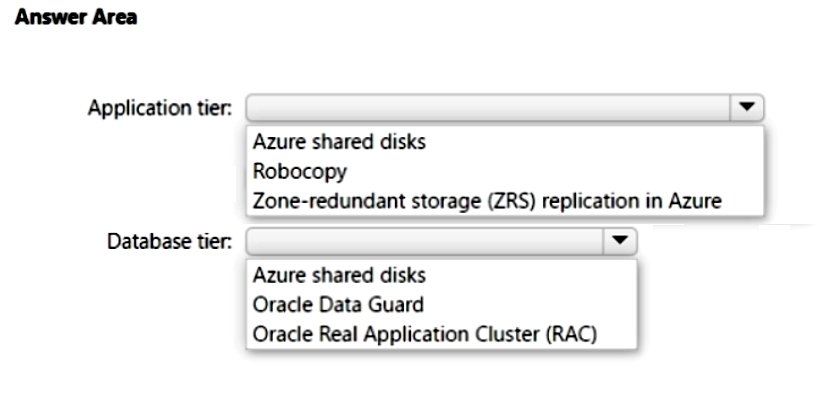

What should you use to ensure redundancy for the application tier and the database tier? To answer, select the appropriate options in the answer area.
NOTE: Each correct selection is worth one point.
Explanation: Azure shared disks provide shared storage for clustered SAP application services. Oracle Data Guard maintains a standby database for failover across availability zones.
Question 62
HOTSPOT

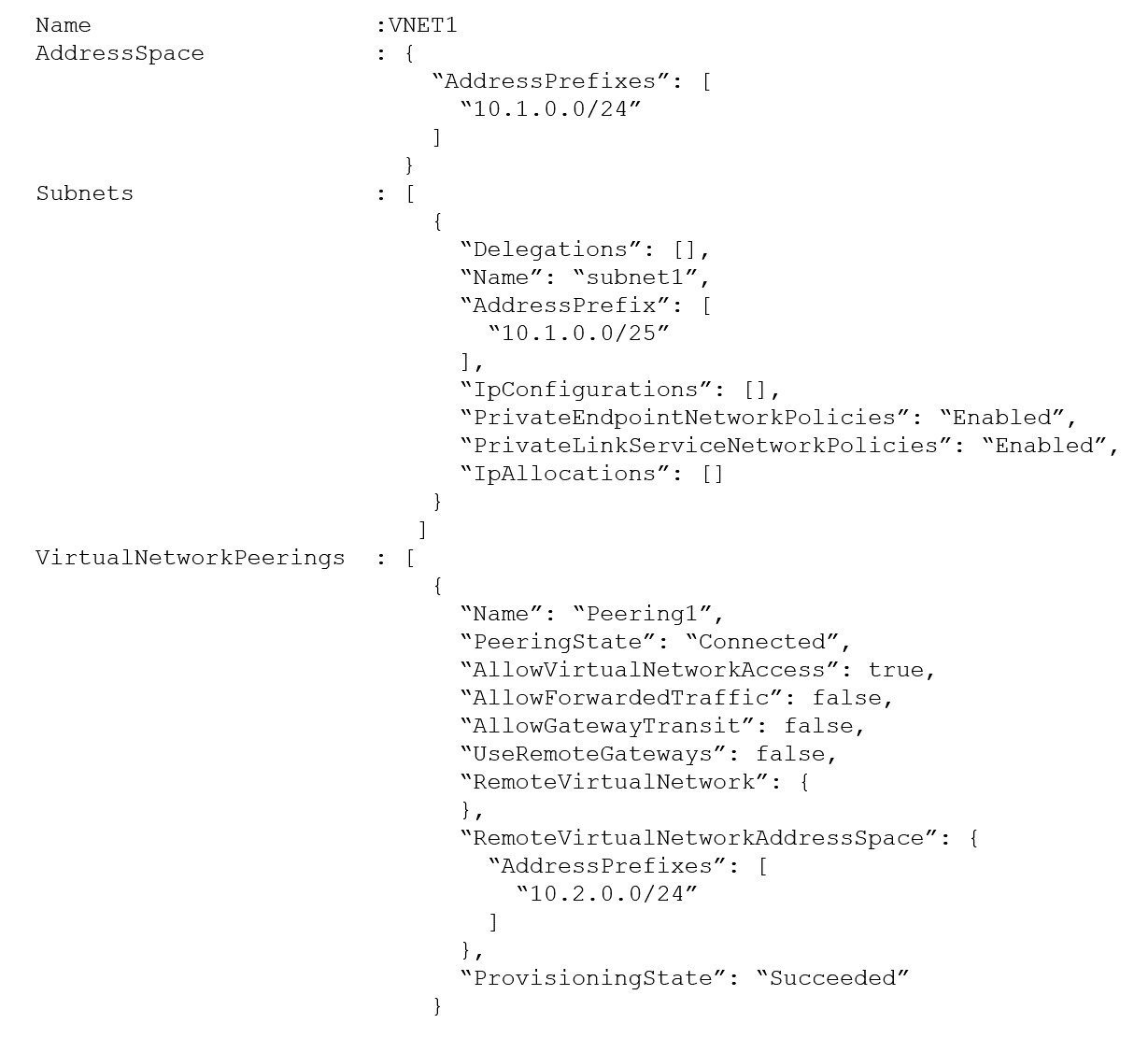

You have an on-premises SAP landscape and an Azure subscription that contains a virtual network named VNET1. VNET1 has the following settings.
You plan to migrate the landscape to Azure.
You need to configure VNET1 to support the SAP landscape.

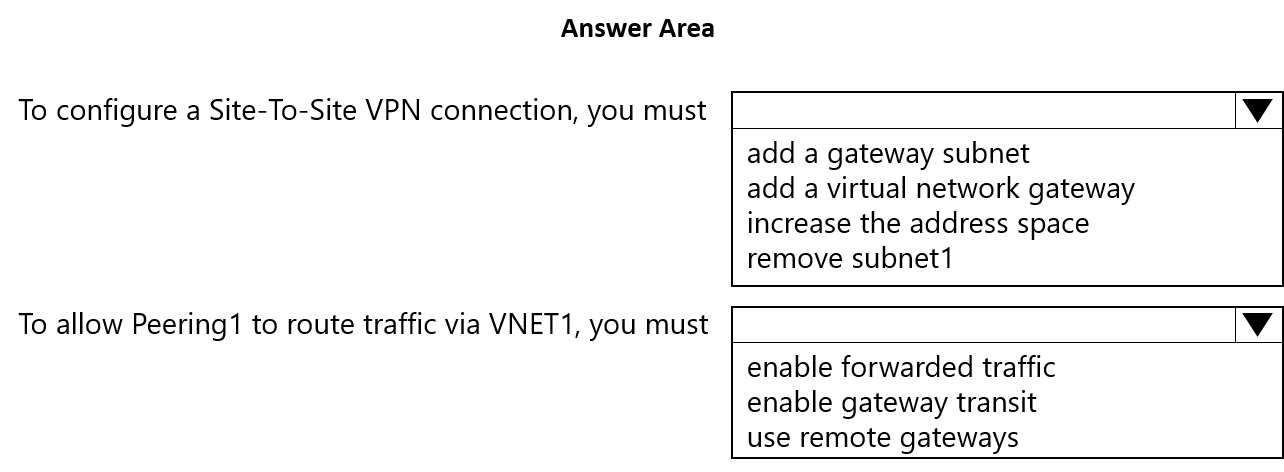

Use the drop-down menus to select the answer choice that completes each statement based on the information presented in the settings.
NOTE: Each correct selection is worth one point.
Explanation: A Site-to-Site VPN gateway requires a dedicated GatewaySubnet. Enabling gateway transit lets the peered network use VNET1’s gateway.
Question 63
You have an Azure subscription that contains an Azure Monitor for SAP solutions resource and a virtual machine named VM1. VM1 runs SUSE Enterprise Linux (SLES) and hosts an SAP NetWeaver application server.
You need to monitor the CPU, memory, and network usage of VM1 by using the Azure Monitor for SAP solutions resource.
What should you do first?
A. On VM1, install the Prometheus node exporter.
B. From the Azure portal, add the Azure Monitor for SAP solutions NetWeaver provider.
C. From the Azure portal, add the Azure Monitor for SAP solutions OS (Linux) provider.
D. On VM1, install the Telegraf agent.
Show Answer
Correct Answer: A
Explanation: Install the Prometheus node exporter on VM1 first so the OS (Linux) provider can collect its CPU, memory, and network metrics. Then add the OS (Linux) provider to the Azure Monitor for SAP solutions resource.
Question 64
You have an Azure virtual machine named VM1 that runs SUSE Linux Enterprise Server (SLES).
You need to deploy Azure Monitor for SAP Solutions to VM1. The solution must support gathering CPU and memory metrics.
What should you install on VM1?
A. the SAPControl web service
B. Node Exporter
C. Performance co-pilot
D. the Log Analytics agent
Show Answer
Correct Answer: B
Explanation: Node Exporter exposes Linux host metrics, including CPU and memory usage, for Azure Monitor for SAP solutions to collect.
Question 65
You have an on-premises SAP NetWeaver development landscape that contains the resources shown in the following table.
You have a 500-Mbps ExpressRoute circuit between the on-premises environment and a virtual network.
You plan to migrate the landscape to Azure.
What should you include in the solution?
A. Azure Data Box
B. Microsoft System Center 2019 - Data Protection Manager (DPM 2019)
C. Azure Site Recovery
D. Azure Backup Server
Show Answer
Correct Answer: A
Explanation: Use Azure Data Box to transfer the landscape’s large data volume to Azure. A 500-Mbps ExpressRoute circuit may make transferring it over the network impractical or slow; Data Box provides an offline bulk-transfer option.
Question 66
You have an existing SAP production landscape on Azure. The SAP application virtual machines have static IP addresses.
You need to replicate the virtual machines to another Azure region by using Azure Site Recovery. The source and target subnets have different address ranges.
Which three actions should you perform? Each correct answer presents part of the solution.
NOTE: Each correct selection is worth one point.
A. Create a recovery plan.
B. Stop the virtual machines.
C. Create a backup policy
D. Modify the networking configuration.
E. Replicate the virtual machines.
Show Answer
Correct Answer: A, D, E
Explanation: Replicate the virtual machines with Azure Site Recovery, configure the target networking so the VMs use addresses in the target subnet’s range, and create a recovery plan to coordinate failover. The VMs do not need to be stopped, and a backup policy is not required for replication.
Question 67
You have two Azure virtual machines named VM1 and VM2. VM1 hosts a single container database (SDC) for SAP HANA instance named sd1. VM2 hosts an SDC HANA instance named sd2. Azure Backup is enabled for the HANA databases on VM1 and VM2.
You need to restore sd1 to sd2 and overwrite the database instance on VM2.
What should you do first in the Azure portal?
A. From Restore Configuration, set Restored DB Name to sd1(sdc).
B. Upgrade sd2 to Multiple Container Database (MDC).
C. From Restore Configuration, set Restored DB Name to sd2(sdc).
D. Rename the SystemDB database of sd2.
Show Answer
Correct Answer: C
Explanation: Set **Restored DB Name** to **sd2(sdc)** so the restore targets and overwrites the existing SDC database on VM2.
Question 68
DRAG DROP
You have an SAP NetWeaver deployment hosted on Azure virtual machines.
You need to implement Azure Monitor for SAP Solutions. The solution must ensure that the source data is available for all NetWeaver metric workbook visualizations.

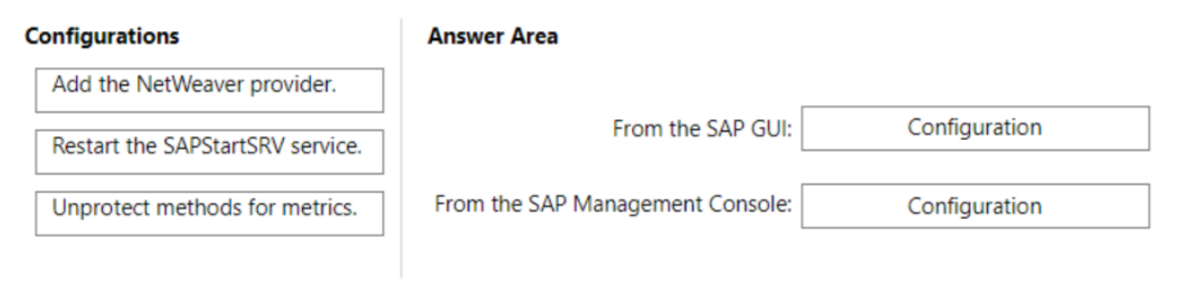

What should you include in the solution? To answer, drag the appropriate configurations to the correct portals. Each configuration may be used once, more than once, or not at all. You may need to drag the split bar between panes or scroll to view content.
NOTE: Each correct selection is worth one point.
Show Answer
Correct Answer: From the SAP GUI: Unprotect methods for metrics.
From the SAP Management Console: Restart the SAPStartSRV service.
Explanation: Unprotecting the required SAP Control web methods lets the NetWeaver provider collect metrics. Restarting SAPStartSRV applies the change.
Question 69
DRAG DROP
You have an Azure subscription that contains a highly available SAP NetWeaver deployment. The deployment contains four virtual machines.
You need to monitor the NetWeaver deployment by using Azure Monitor for SAP Solutions. During the implementation of Azure Monitor for SAP Solutions, downtime of the deployment must be minimized.

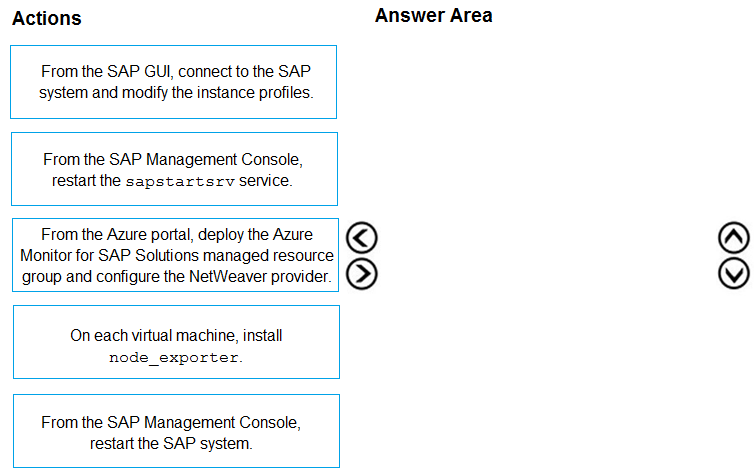

Which three actions should you perform in sequence? To answer, move the appropriate actions from the list of actions to the answer area and arrange them in the correct order.
Show Answer
Correct Answer: 1. From the SAP GUI, connect to the SAP system and modify the instance profiles.
2. From the SAP Management Console, restart the sapstartsrv service.
3. From the Azure portal, deploy Azure Monitor for SAP Solutions and configure the NetWeaver provider.
Explanation: The profile changes prepare the SAP instances for monitoring. Restarting sapstartsrv applies those changes without restarting the SAP system, minimizing downtime. Then configure the NetWeaver provider.
Question 70
Note: This question is part of a series of questions that present the same scenario. Each question in the series contains a unique solution that might meet the stated goals. Some question sets might have more than one correct solution, while others might not have a correct solution.
After you answer a question in this section, you will NOT be able to return to it. As a result, these questions will not appear in the review screen.
You deploy SAP HANA on Azure (Large Instances).
You need to back up the SAP HANA database to Azure.
Solution: You use a third-party tool that uses backint to back up the SAP HANA database to Azure blob storage.
Does this meet the goal?
A. Yes
B. No
Show Answer
Correct Answer: A
Explanation: Yes. A third-party backup tool that supports the SAP HANA Backint interface can stream database backups to a suitable backup destination, including Azure Blob Storage.
